What is Join in Sql Server? How many types of Joins?


Join is a query type. As its name suggest Join is used to display/fetch the records from two or more tables.
I have created two tables.
BOOK (here ID is primary key).
ID
Int
BOOK_NAME
varchar(50)
BOOK_PRICE
varchar(50)
BOOK_PUBLICATION
varchar(50)


AUTHOR (Here ID is primary key).
ID
Int
AUTHOR_NAME
varchar(50)


Joins are of three types:

1.       Inner join: Display only matched records from both tables.
Example:
SELECT * from dbo.BOOK bk inner join dbo.AUTHOR au on bk.ID = au.ID
Or
select bk.BOOK_NAME,bk.BOOK_PRICE,bk.BOOK_PUBLICATION,au.AUTHOR_NAME from dbo.BOOK bk inner join dbo.AUTHOR au on bk.ID = au.ID
Join in Sql Server


2.       Outer join: Outer are of three types:
                                 i.            Left outer Join: It displays all the result from left (first) table and display null for right (second) table if value is not matched.
Example:
select * from dbo.BOOK bk left outer join dbo.AUTHOR au on bk.ID = au.ID
Or
select bk.BOOK_NAME,bk.BOOK_PRICE,bk.BOOK_PUBLICATION,au.AUTHOR_NAME from dbo.BOOK bk left outer join dbo.AUTHOR au on bk.ID = au.ID

Join in Sql Server

                               ii.            Right outer Join: It displays all the result from right (second) table and display null for left (first) table if value is not matched.
Example:
select * from dbo.BOOK bk right outer join dbo.AUTHOR au on bk.ID = au.ID
Or
select bk.BOOK_NAME,bk.BOOK_PRICE,bk.BOOK_PUBLICATION,au.AUTHOR_NAME from dbo.BOOK bk right outer join dbo.AUTHOR au on bk.ID = au.ID
Join in Sql Server

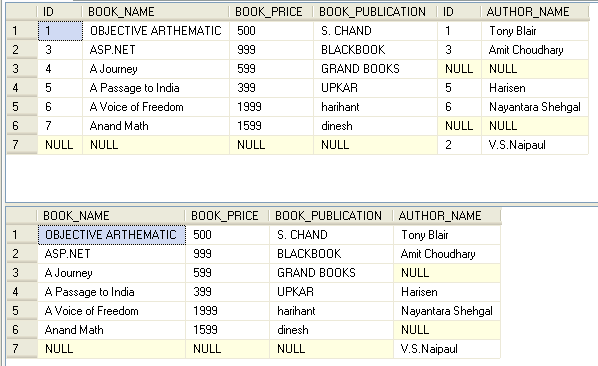

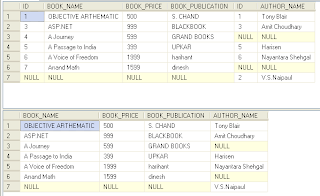

                              iii.            Full outer Join: It displays all result from both table but where id is not matched display null.
Example:
select * from dbo.BOOK bk full outer join dbo.AUTHOR au on bk.ID = au.ID
Or
select bk.BOOK_NAME,bk.BOOK_PRICE,bk.BOOK_PUBLICATION,au.AUTHOR_NAME from dbo.BOOK bk full outer join dbo.AUTHOR au on bk.ID = au.ID

Join in Sql Server

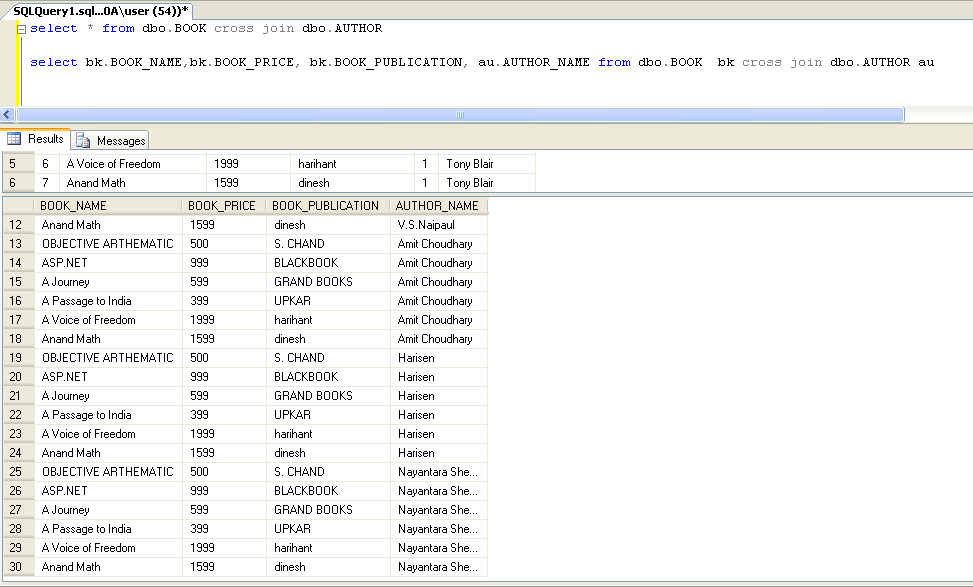

3.       Cross join: Cross join multiply the records present in both tables. E.g. one table has 6 records and second table has 5 records then cross join display the 30 records.
Example:
select * from dbo.BOOK cross join dbo.AUTHOR
Or
select bk.BOOK_NAME,bk.BOOK_PRICE, bk.BOOK_PUBLICATION, au.AUTHOR_NAME from dbo.BOOK  bk cross join dbo.AUTHOR au
Join in Sql Server
