Dynamic vertical expanding and collapsing menu using jquery in asp.net

In this article I am going to explain how to create dynamic expanding and collapsing vertical menu using Jquery in asp.net.


Description:
Recently I have got a requirement to make the vertical menu with expand and collapse. To implement this functionality I have used the datalist control.

I have created two tables Tb_Category and Tb_Subcategory.

Dynamic vertical expanding and collapsing menu using jquery in asp.net

Implementation:
Add the webform to project. Drag and drop the require control from toolbox to webform.
  <asp:DataList ID="dlcategory" runat="server" onitemdatabound="DataList1_ItemDataBound" DataKeyField="id">
        <ItemTemplate>
        <img alt = "" style="cursor: pointer" src="images/plus.png" />
                  <%# DataBinder.Eval(Container.DataItem, "Category")%>
                 <div Style="display: none">
                    <asp:DataList ID="dlsubcategory" runat="server" >
                        <ItemTemplate>
                              <asp:HyperLink runat="server" Text='<%# Eval("SubCategory") %>' CssClass="subcategory"  NavigateUrl="#"></asp:HyperLink>
                        </ItemTemplate>
                    </asp:DataList>
                   </div>
        </ItemTemplate>
        </asp:DataList>

Add the script and style before closing the head section
<script type="text/javascript" src="http://ajax.googleapis.com/ajax/libs/jquery/1.8.3/jquery.min.js"></script>
<script>
    $("[src*=plus]").live("click", function () {
        $(this).closest("tr").after("<tr><td colspan = '999'>" + $(this).next().html() + "</td></tr>")
        $(this).attr("src", "images/minus.png");
    });
    $("[src*=minus]").live("click", function () {
        $(this).attr("src", "images/plus.png");
        $(this).closest("tr").next().remove();
    });
</script>
<style>
.subcategory
{margin-left: 20px;}
a {text-decoration: none;}
</style>

Complete HTML Markup of webform:
<html xmlns="http://www.w3.org/1999/xhtml">
<head runat="server">
    <title></title>
    <script type="text/javascript" src="http://ajax.googleapis.com/ajax/libs/jquery/1.8.3/jquery.min.js"></script>
<script>
    $("[src*=plus]").live("click", function () {
        $(this).closest("tr").after("<tr><td colspan = '999'>" + $(this).next().html() + "</td></tr>")
        $(this).attr("src", "images/minus.png");
    });
    $("[src*=minus]").live("click", function () {
        $(this).attr("src", "images/plus.png");
        $(this).closest("tr").next().remove();
    });
</script>
<style>
.subcategory
{margin-left: 20px;}
a {text-decoration: none;}
</style>
</head>
<body>
    <form id="form1" runat="server">
    <div>
        <asp:DataList ID="dlcategory" runat="server" onitemdatabound="DataList1_ItemDataBound" DataKeyField="id">
        <ItemTemplate>
        <img alt = "" style="cursor: pointer" src="images/plus.png" />
                  <%# DataBinder.Eval(Container.DataItem, "Category")%>
                 <div Style="display: none">
                    <asp:DataList ID="dlsubcategory" runat="server" >
                        <ItemTemplate>
                              <asp:HyperLink runat="server" Text='<%# Eval("SubCategory") %>' CssClass="subcategory"  NavigateUrl="#"></asp:HyperLink>
                        </ItemTemplate>
                    </asp:DataList>
                   </div>
        </ItemTemplate>
        </asp:DataList>
    </div>
    </form>
</body>
</html>

Import the namespaces
C# code:
using System.Data;
using System.Data.SqlClient;
using System.Configuration;

VB.net code:
Imports System.Data
Imports System.Data.SqlClient
Imports System.Configuration

Create sqlconnection
C# code:
SqlConnection con = new SqlConnection(ConfigurationManager.ConnectionStrings["connection"].ToString());

VB.net code:
Private con As New SqlConnection(ConfigurationManager.ConnectionStrings("connection").ToString())


Bind the category to parent datalist
Create a method to bind the datalist and call the method in page load.
C# code:
protected void Page_Load(object sender, EventArgs e)
    {
        if (!IsPostBack)
        {
            BindMenu();
        }
    }

public void BindMenu()
    {
        SqlDataAdapter adp = new SqlDataAdapter("Select * from Tb_Category", con);
        DataTable dt = new DataTable();
        adp.Fill(dt);
        dlcategory.DataSource = dt;
        dlcategory.DataBind();
    }

VB.net code:
Protected Sub Page_Load(sender As Object, e As System.EventArgs) Handles Me.Load
        If Not IsPostBack Then
            BindMenu()
        End If
    End Sub

Public Sub BindMenu()
        Dim adp As New SqlDataAdapter("Select * from Tb_Category", con)
        Dim dt As New DataTable()
        adp.Fill(dt)
        dlcategory.DataSource = dt
        dlcategory.DataBind()
    End Sub

Bind the subcategory to child datalist
On ItemDatabound event of parent datalist write the below given code. Search the child datalist and get the records (sub category).

C# code:
protected void dlcategory_ItemDataBound(object sender, DataListItemEventArgs e)
    {
        int id = Convert.ToInt32(dlcategory.DataKeys[e.Item.ItemIndex].ToString());
        SqlCommand cmd = new SqlCommand("Select * from Tb_Subcategory where CategoryId_FK = @id",con);
        cmd.Parameters.AddWithValue("@id", id);
        if (con.State == ConnectionState.Closed)
        {
            con.Open();
        }
        SqlDataAdapter adp = new SqlDataAdapter(cmd);
        DataTable dt = new DataTable();
        adp.Fill(dt);
        DataList dlsubcat = (DataList)e.Item.FindControl("dlsubcategory");
        dlsubcat.DataSource = dt;
        dlsubcat.DataBind();
    }

VB.net code:
Protected Sub dlcategory_ItemDataBound(sender As Object, e As System.Web.UI.WebControls.DataListItemEventArgs) Handles dlcategory.ItemDataBound
        Dim id As Integer = Convert.ToInt32(dlcategory.DataKeys(e.Item.ItemIndex).ToString())
        Dim cmd As New SqlCommand("Select * from Tb_Subcategory where CategoryId_FK = @id", con)
        cmd.Parameters.AddWithValue("@id", id)
        If con.State = ConnectionState.Closed Then
            con.Open()
        End If
        Dim adp As New SqlDataAdapter(cmd)
        Dim dt As New DataTable()
        adp.Fill(dt)
        Dim dlsubcat As DataList = DirectCast(e.Item.FindControl("dlsubcategory"), DataList)
        dlsubcat.DataSource = dt
        dlsubcat.DataBind()
    End Sub

Build, run the project and test it.

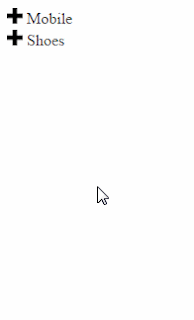

 DEMO:


Dynamic vertical expanding and collapsing menu using jquery in asp.net

     In this article we have learn how to create dynamic vertical expanding and collapsing menu  using Jquery in asp.net. I hope you enjoyed this article. Please post you comment, query and feedback about this article. You can like me on Facebook, Google+, Linkedin and Twitter via hit on Follow us Button and also can get update follow by Email.
